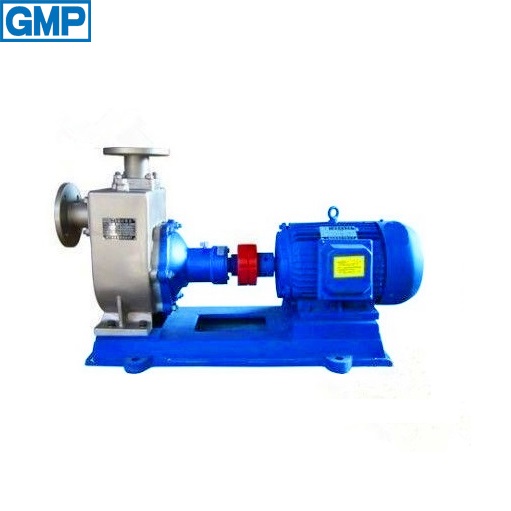

ZX self-priming pump

     ZX serise self-priming centrifugal pump is a new modified centrifugal pump which is developed on the basis of aborbing domestic and overseas advanced technology of the same product and combing many years design and manufacturing experience of our company.

Product name : ZX self-priming pump
Item : self-priming pump

Features :
---Self-priming with 5m suction lift
---It stands out the advantage of simple structure,conveninet operation and maintenance.
---Stable working,high efficiency,long life,good self-priming performance are its main characteristics.
---No need the bottom valve in the pipeline,just needs to have amount of liguid in pump for self-priming
before starting pump.This predigests pipeline system and improvesworking condition.

Data sheet :
---Flow: up to 600m3/h
---Head: up to 80m
---Speed: 1480r/min, 2950r/min (50HZ)  1750r/min, 3540r/min(60HZ)
---Temperature: 105℃max

Application:
---Industrial and municipal water supply
---industrials of chemical, petroleum
.---Water treatment plants
---Fire fighting
