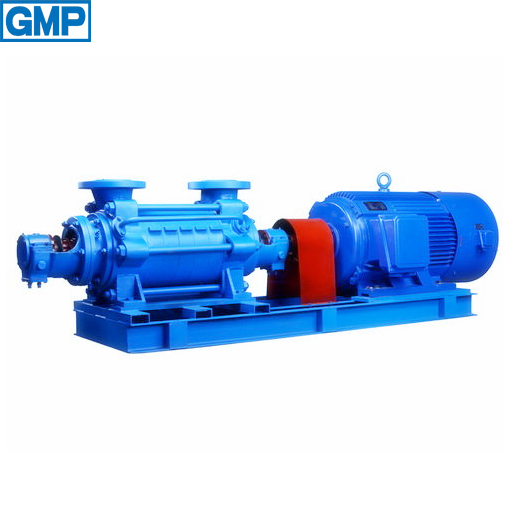

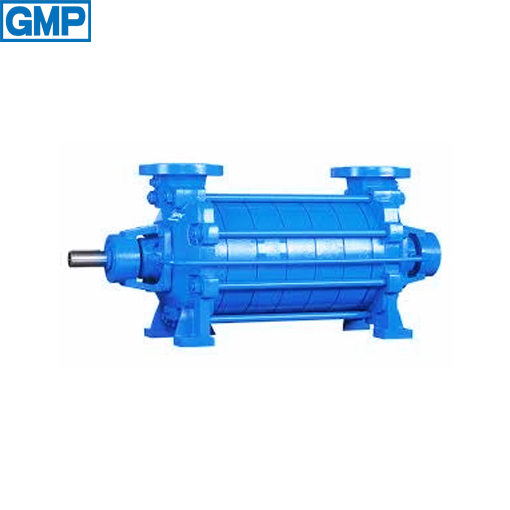

DG boiler feed pump

       DG type Boiler Feed Pump is multi-stage,segmental centrifugal pump.The pump is a high efficiency&energy-saving product and is specially designed for new series of industrial steam boiler.It is not only used for feed water of low-middle boiler but also suitable for pumping high lift water.The temperature of the liquid is -20°C~105°C.The maximum inlet pressure is not allowed more than 0.59Mpa(6kgf/cm2)

Product name : DG horizontal multistage pump , boiler feed pump
Item : High pressure multistage pump( horizontal and vertical type)

Features :
---Segmental type high pressure pumps
---Suitable for pumping clear or slightly dirty liquids
---Direction of rotation is clockwise viewed from the drive end
---Long operational lifetime

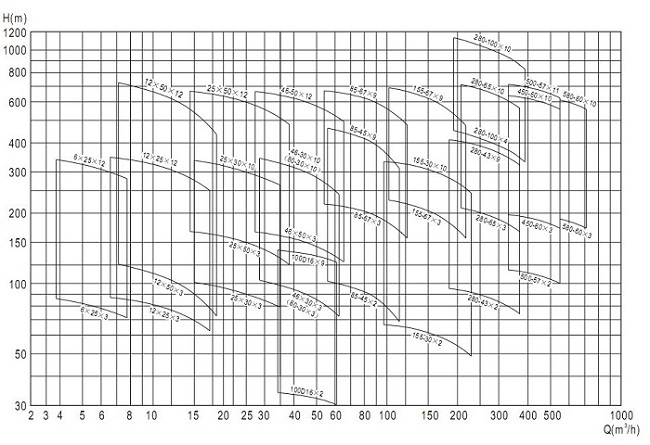

Data sheet :
---Flow: 6.3-450m3/h
---Head: 50-1065m
---Temperature: 80℃max, for boiler feed, up to 150℃

Application:
---Mining, boiler feed, feed water plants, Hot and cold water circulation, Fire fighting
