XA end suction water pump is a single stage, single suction back pull out design pump, all dimensions are designed according to DIN24255 standard, and the flange can be drilled according to GB4216-84(PN16) or ISO, BS and ANSI standard. The pump is for general applications.

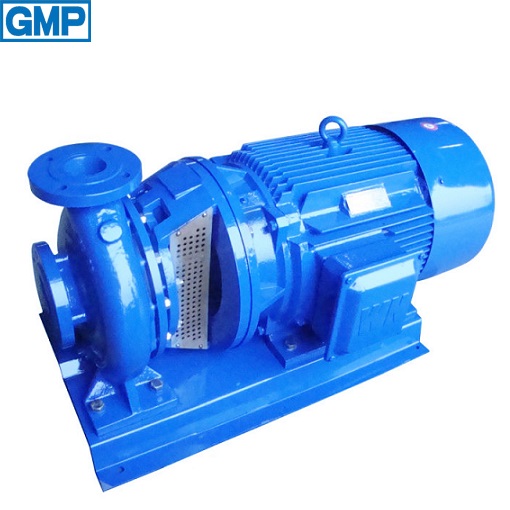

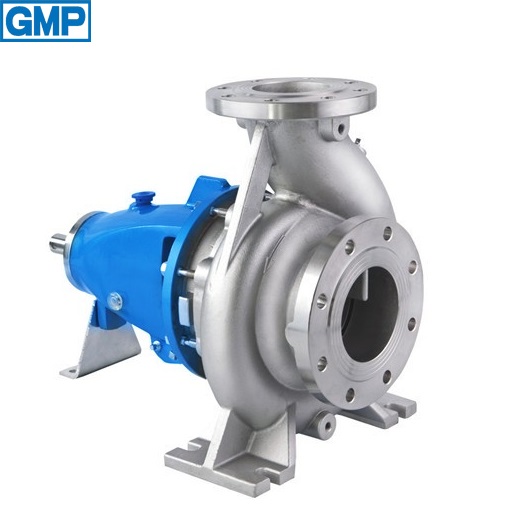

Product name : XA end suction pump( Close-coulped and long-coupled type)
Item: DIN24255/EN733 standard
Features :
---Comply with DIN24255 standard
---Back-pull-out design
---Wide hydraulic coverage
---Low NPSH requirement
---High interchangeability- Entire range uses just 4 bearing assemblies
---Now type XA has been extended to incorporate 4 new bigger sizes ie. 200/32, 200/40, 250/32 and 250/40,enlarging the performance coverage up to 1080 m3/h flow rate
---Flexible shaft seal with mechanical seal as standard and gland packing as an option
---Various materials available (cast iron, bronze and SS316 etc.)
Data sheet :
---Flow:2-1100m3/h
---Head: 2-150m
---Speed: 1450rpm/2900rpm (50Hz) 1750rpm/3500rpm (60Hz)
---Temperature: -10--150 Celsius Degree
---Operating Pressure: 10Bar, Optional 16Bar
Application:
---City Water Supply , Irrigation ,
Fire Fighting , Air conditioning , water treatment plants
